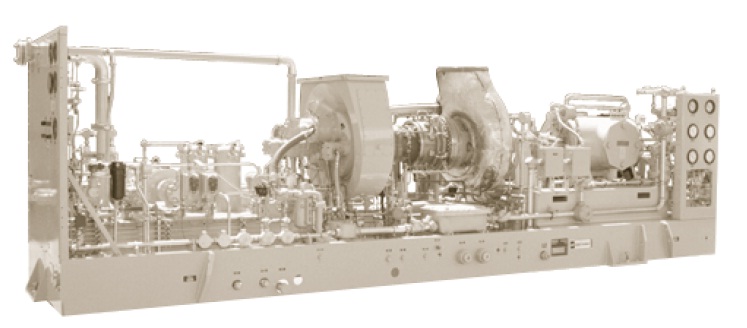

Caterpillar Solar Saturn

Descriptions Values
Rated power (ISO), kW 4600
Efficiency (ISO), % 27.9
Fuel gas consumption, m3/kW h 0.512
Exhaust gas flow, kg/sec 19.6
Exhaust gas temperature, ºС 510
Dimensions (LxWxH), м 2.2х .81 х .63
Weight, kg 860 (with acc.)
Single-shaft gas turbine comprising & free
power turbine
Compressor – axial, 11 stages – 7.9:1
Combustion chamber – can-annular with 12
combustion liners, TIT – 705ºС
Gas generator turbines – axial, 1-2 stages
Power turbine – axial,1- 2 stages
Power turbine speed – 3000, 16500 rpm
Start-up – electric motors U=380 V a.c. N=32 kW
