Value |
Description |
|
26000 |
Rated power (ISO), kW |
|
36.0 |
Efficiency (ISO), % |
|
0.279 |
Fuel gas consumption, m3/kW h |
|
90.0 |
Exhaust gas flow, kg/sec |
|
485 |
Exhaust gas temperature, ºС |
|
6.4 x 2.5 x 2.7 |
Dimensions (LxWxH), m |
|
16 |
Weight, ton |
|

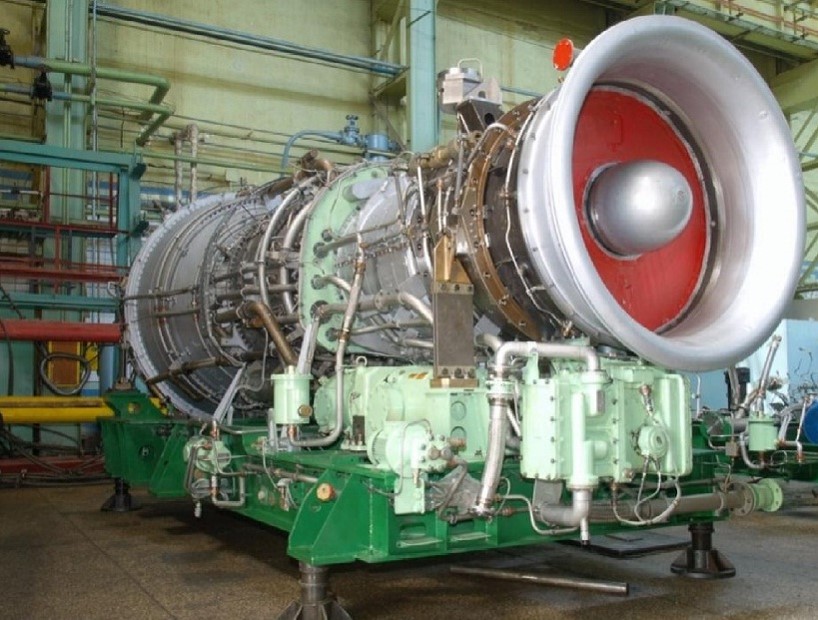

Three-shaft gas turbine comprising two-spool gas |
|
|
Compressor – axial, 9 stages LPC, 9 stages HPC. Pressure ratio – 21.6 – 23,6:1 With 3 Stages of variable inlet guide vane (IGV) 2 Stages of automatic bleed Valve (For surge avoiding) |
|
|
Combustion chamber – can-annular reverse flow with 16 combustion liners, TIT – 1245ºС |
|
|
Gas generator turbines – axial, single stage LPT and HPT |
|
|
Power turbine – axial, 4 stages |
|
|
Power turbine speed – 3000-3600, 4700 rpm |
|
|
Start-up – electric motors U=380 V a.c., N=210 (3 x 70) kW |
|
