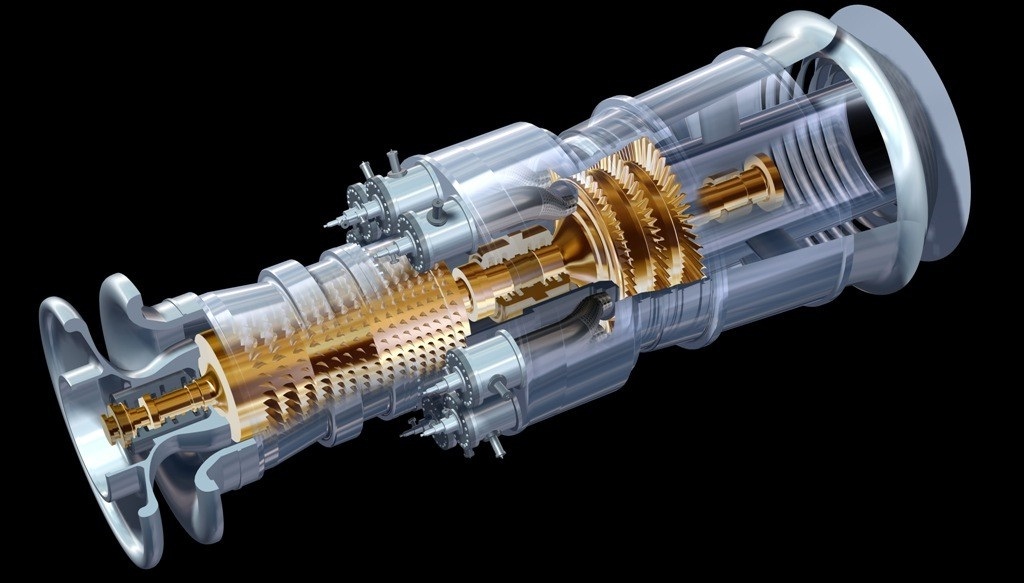

GE Frame 5

Descriptions Values
Rated power (ISO), kW 20000 (Avg.)
Efficiency (ISO), % 26.3
Fuel gas consumption, m3/kW h 0.402
Exhaust gas flow, kg/sec 100.4
Exhaust gas temperature, ºС 385
Dimensions (LxWxH), м 6.4х 2.3 х 2.85
Weight, ton 18
Three-shaft gas turbine comprising two-spool gas
generator and free power turbine
Compressor – axial, 6 stages LPC, 5 stages HPC.
Pressure ratio – 12,7:1
Combustion chamber – can-annular with 10
combustion liners, TIT – 780ºС
Gas generator turbines – axial, two stages LPT
and HPT
Power turbine – axial, 3 or 2 stages
Power turbine speed – 3000, 5200 rpm
Start-up – electric motors U=380 V a.c. N=210 kW
